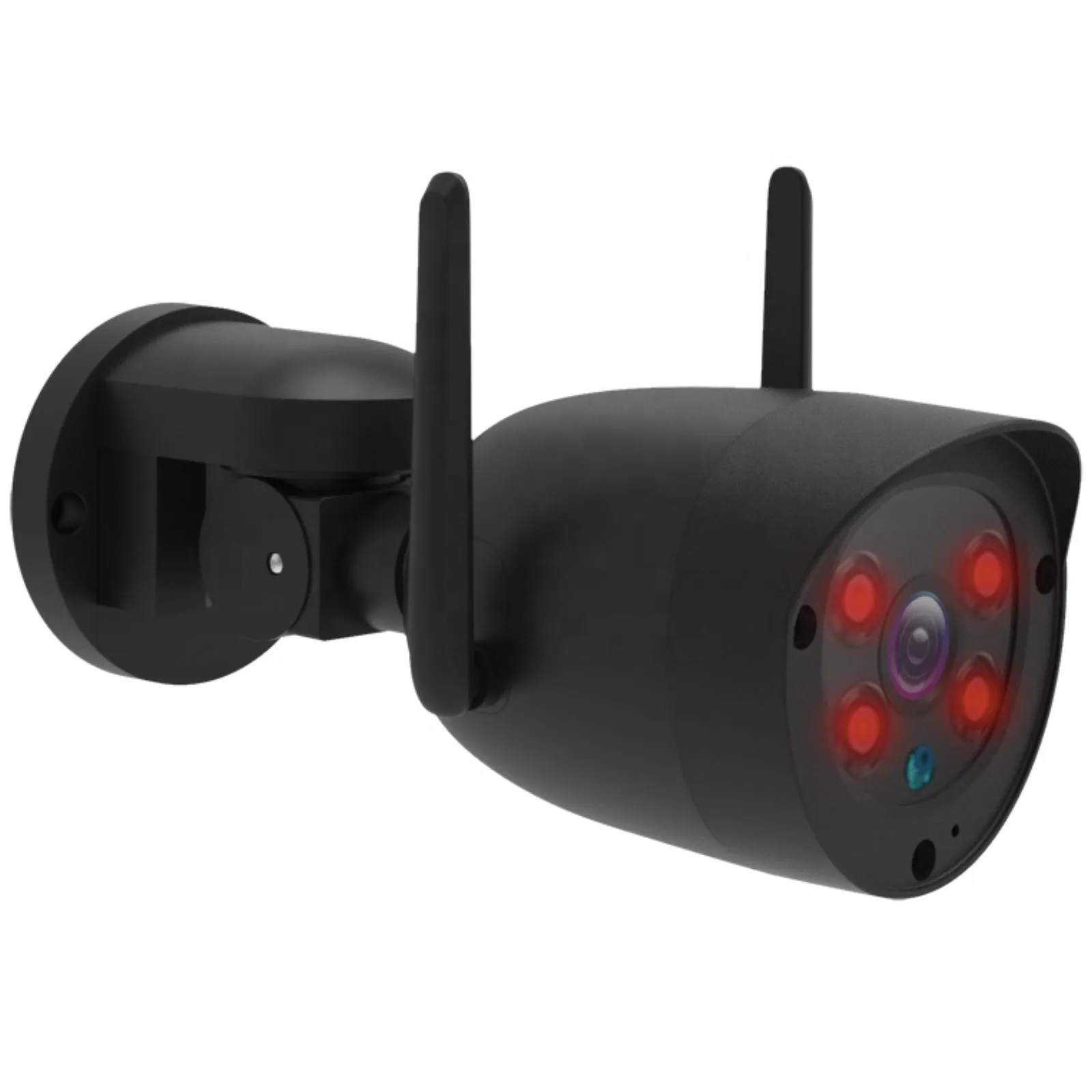

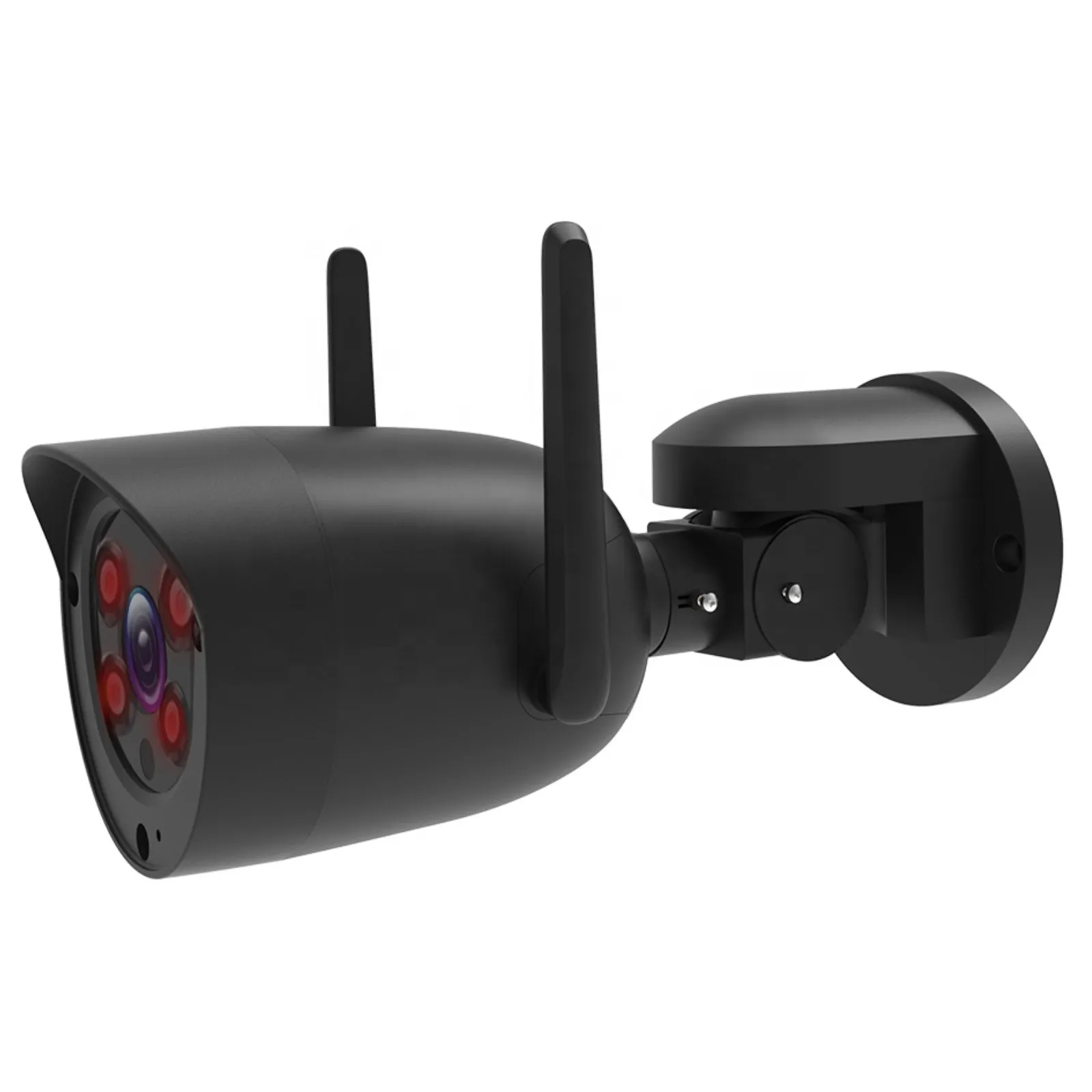

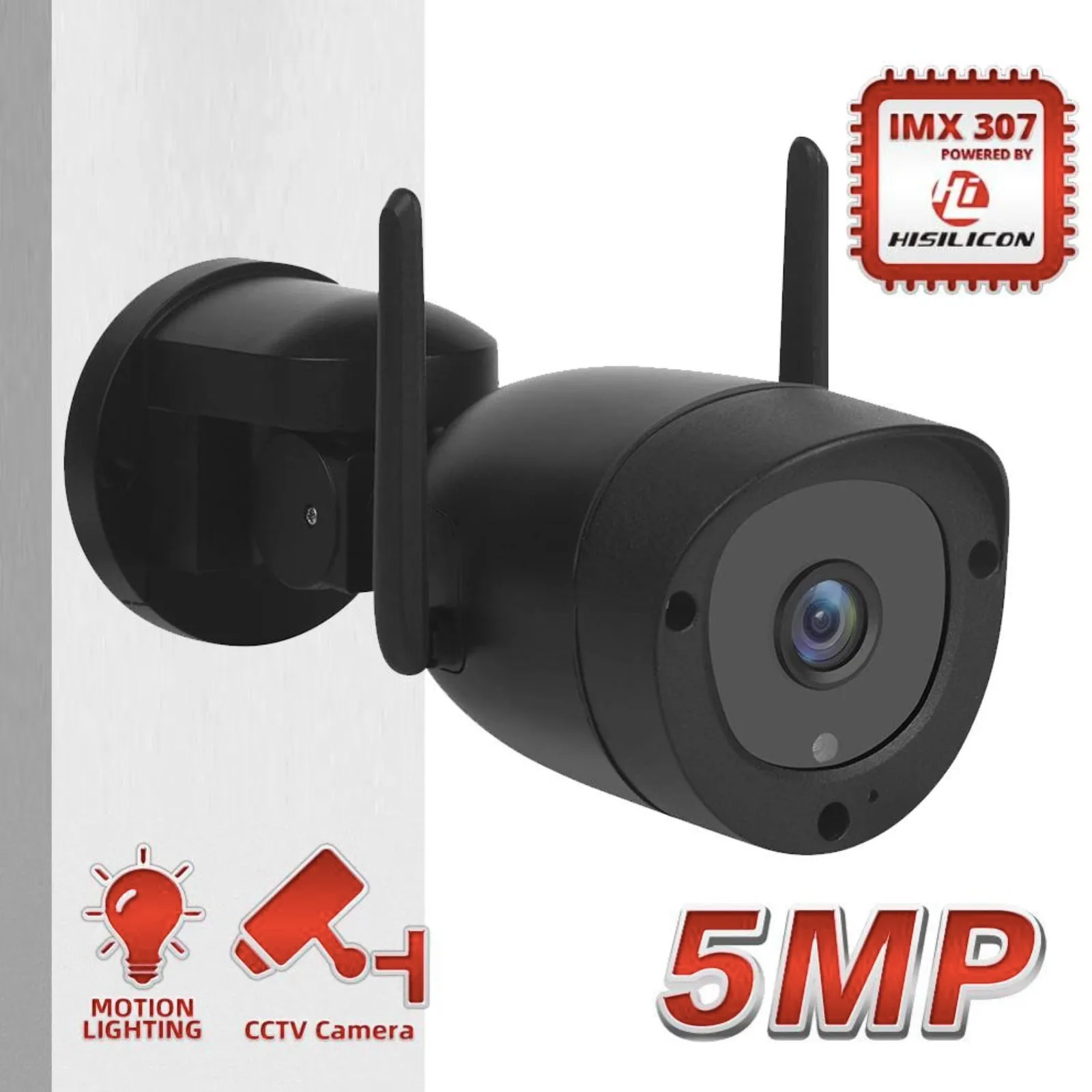

This mini pan & tilt bullet camera is available with wifi LAN router or 4G mobile connection. The wifi version must be connected to a LAN router for remote viewing and the 4G version must have sim card fitted. They are both quick and easy to set up using the CamHipro App. Once connected you can view from phone at anytime and notified whenever movement and/or human is detected. Camera includes 2 way audio, night vision, 180º pan & 90º tilt, human detection tracking, 5 mega pixel (4K HD) image, 3.6mm supports 64GB-128GB TF memory card.
Specification
Item model/part number: GA-156S 4G/Wi-Fi
| product: | WiFi/4G PTZ camera | |
| model: | GA-156S-DHE200WGC/DF2-W(4G)-V2.0/GA-156S-DHE500WS/XF2-W(4G)-V2.0 | |
| color: | Black | |
| Induction principle: | HMD（Human Motion Detection-microwave） | |
| Master chip: | Hi3516EV200/V300 | |

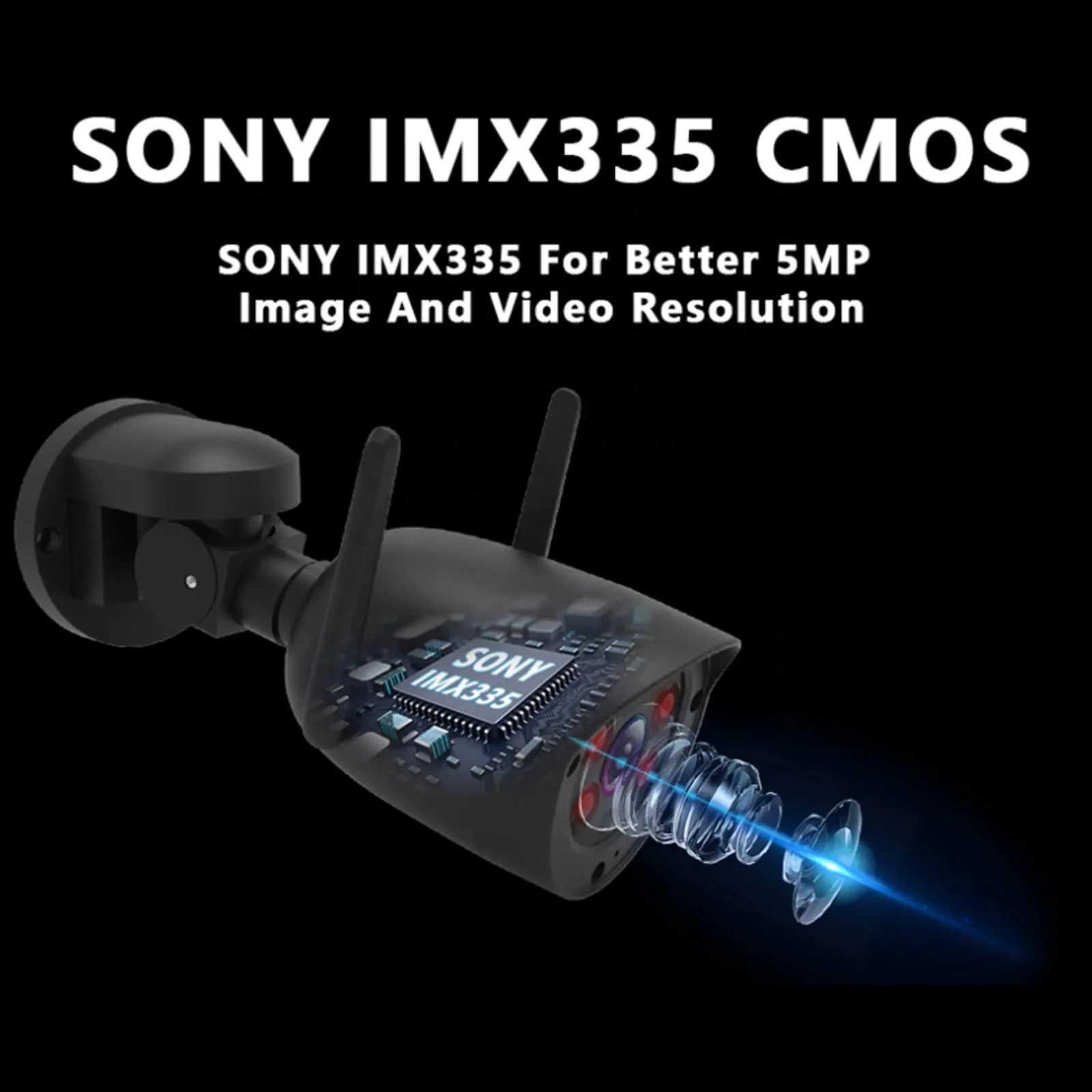

| Sensor type: | IMX307 Fixed focus/ Adjustable Focus 2.0/5.0 MP 1/2.8" CMOS | |
| 4G frequency: | Support full band 4G, needs to choose the version | |
| Network: | TCP/IP，HTTP， UDP， SMTP，DNS，DDNS，NTP , P2P etc | |

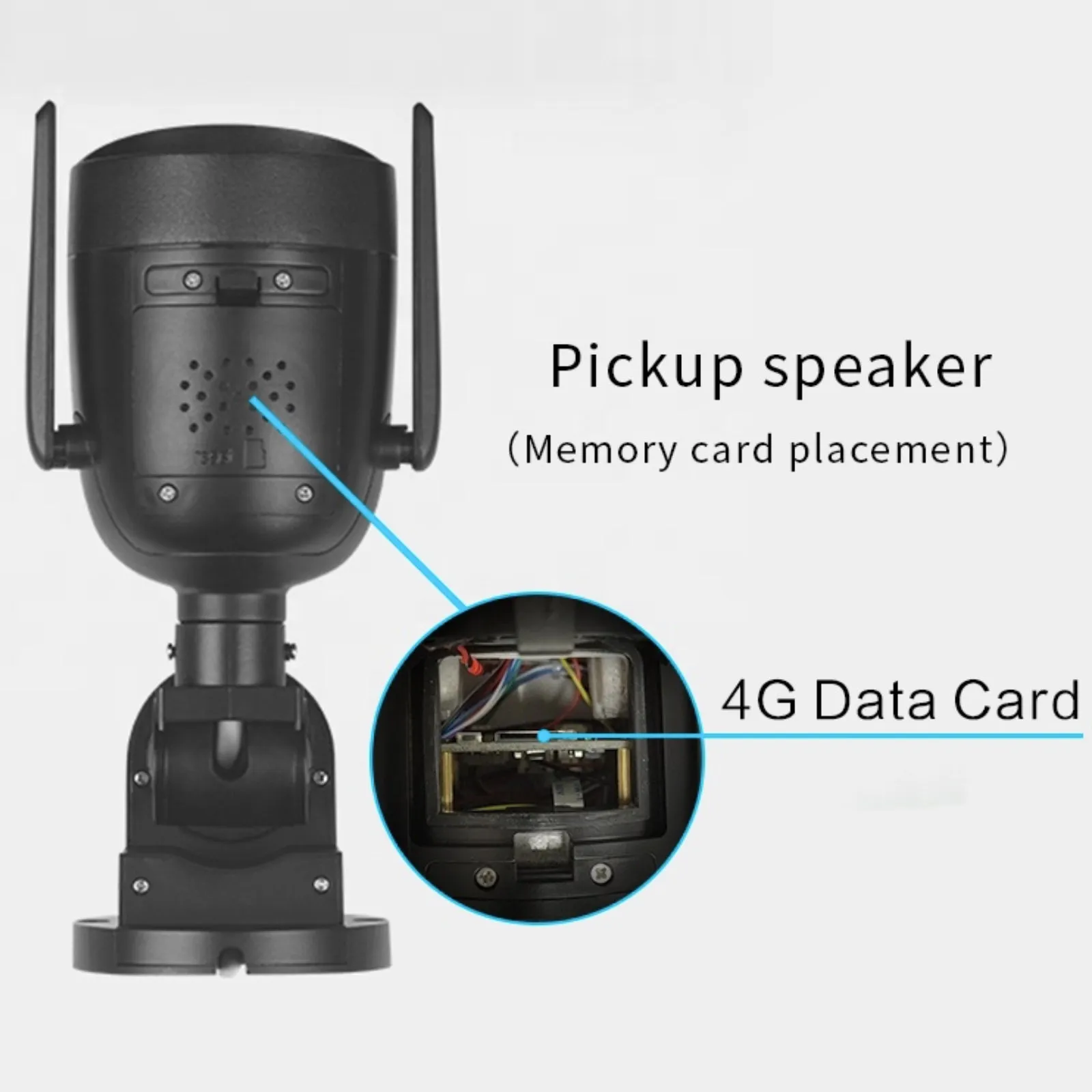

| SIM card: | Nano SIM | |
| Effective pixels: | 2.0/5.0 MP | |
| Image size : | 1920*1080 | |
| Video compressed format: | H.265 | |
| Focal length: | 4MM | |
| Photographic distances: | 0-10m | |

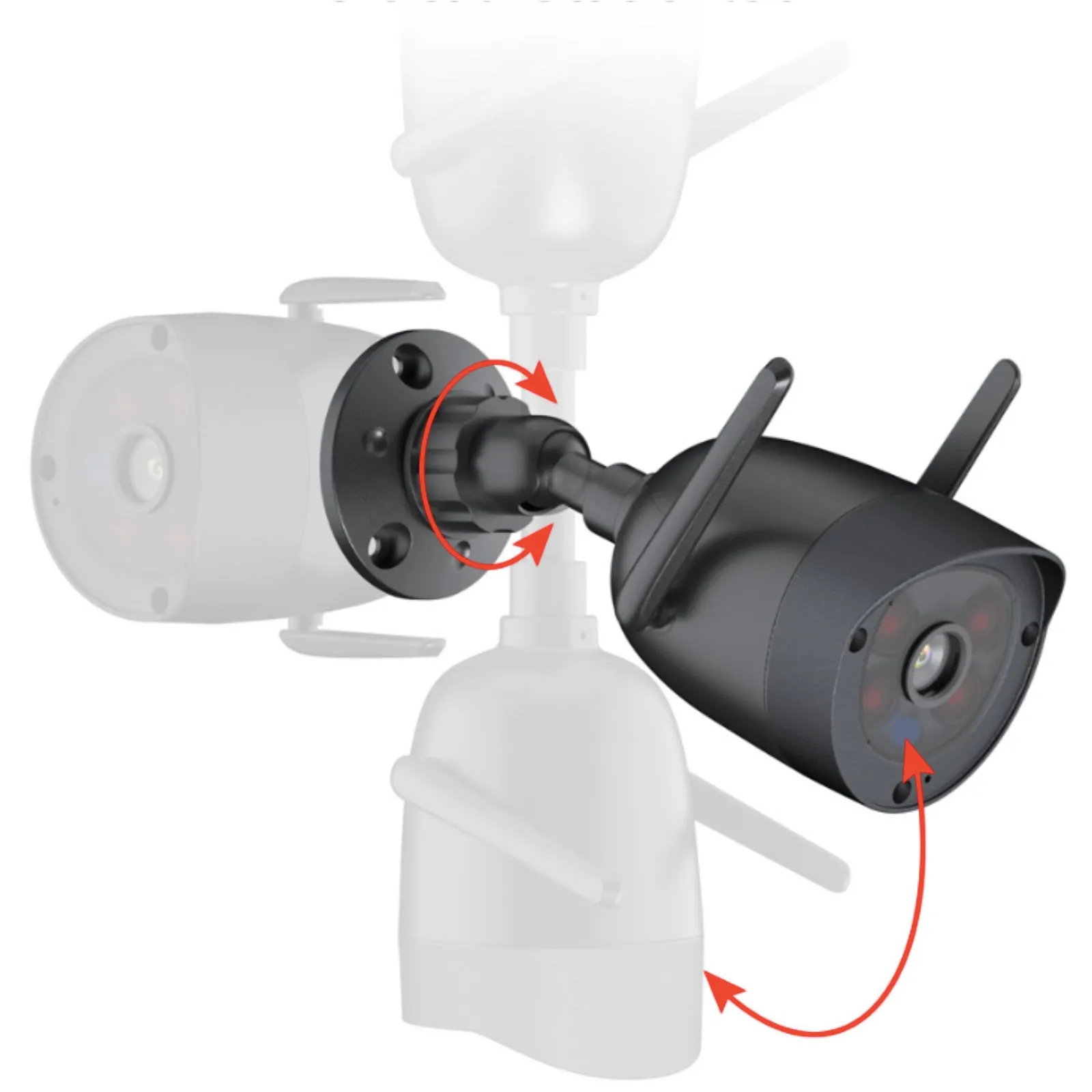

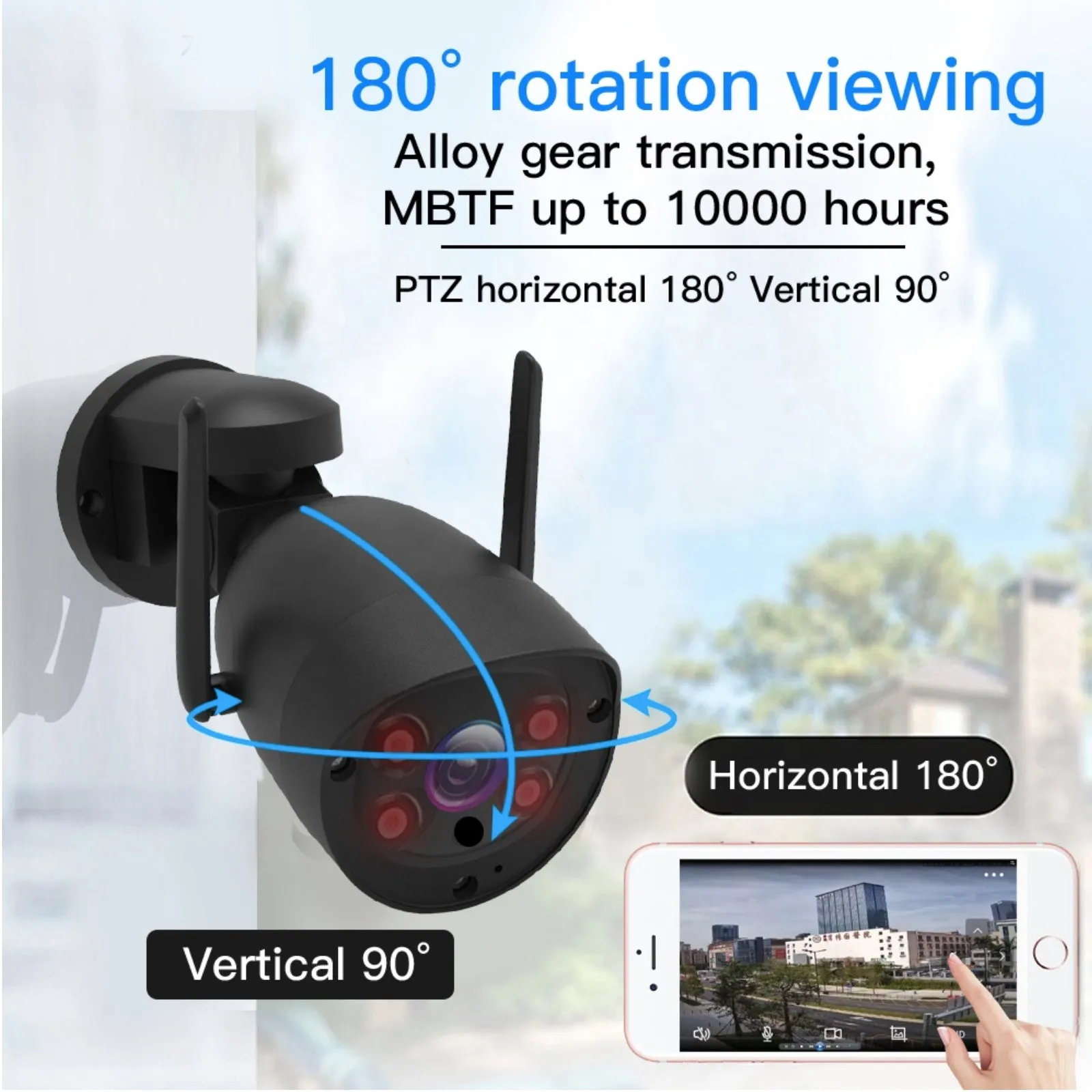

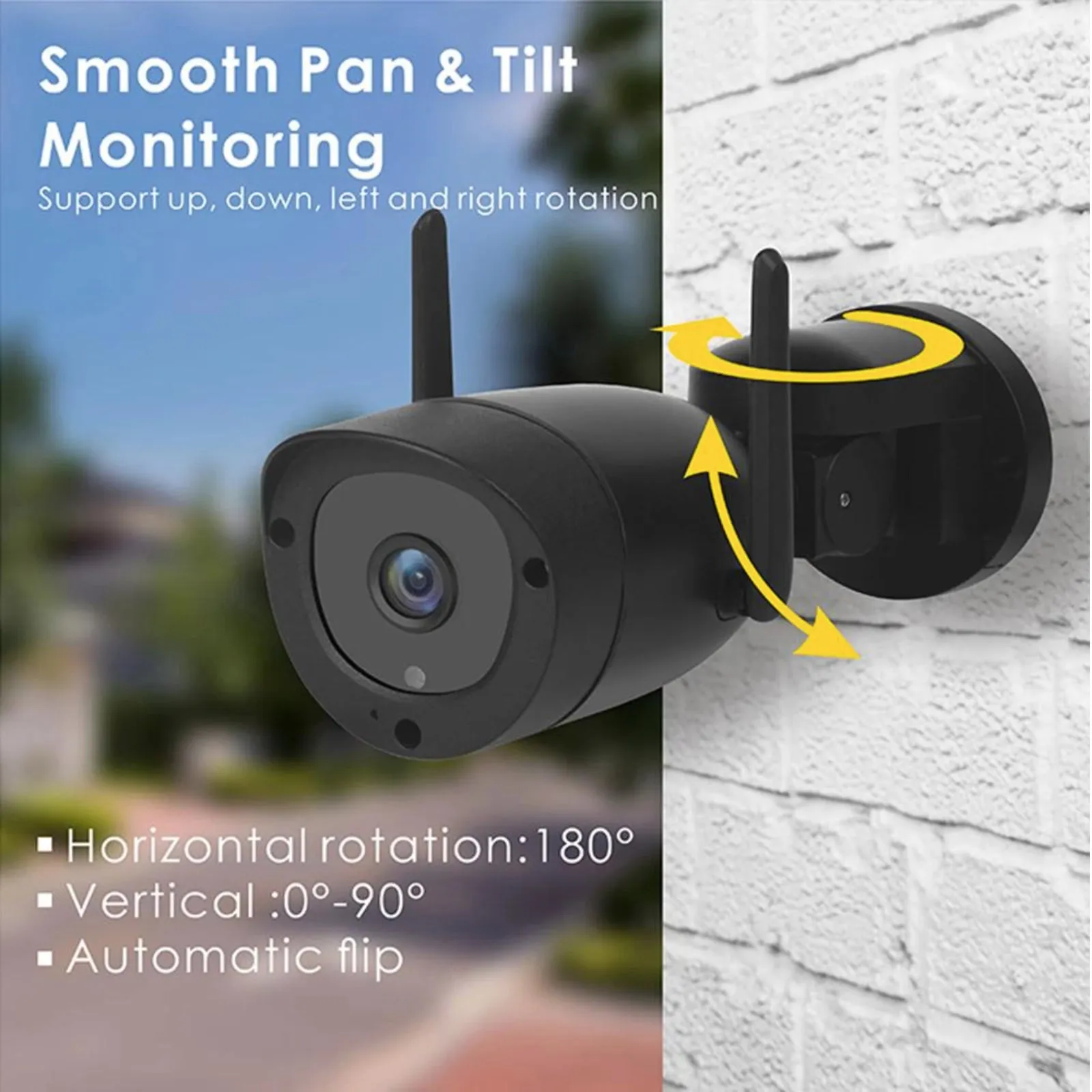

| PTZ | Horizon 180° , Vertical 0°～90° | |
| Control Speed: | Horizon 0.01°～15°/S，Vertical Speed 0.01°～10°/S | |
| Multi Platform support | Multi-platform including Smart phones, PC with WEB，IE Browser etc | |
| Two Way Audio: | Built-In Speaker and Microphone for intercommunication | |
| Interfaces: | RJ45 10M/100M, USB | |
| Night mode: | white lights infared | |
| White light power: | 1.5W LED 0.75W*2 | |
| Infrared power: | 1W LED 0.5W*2 | |

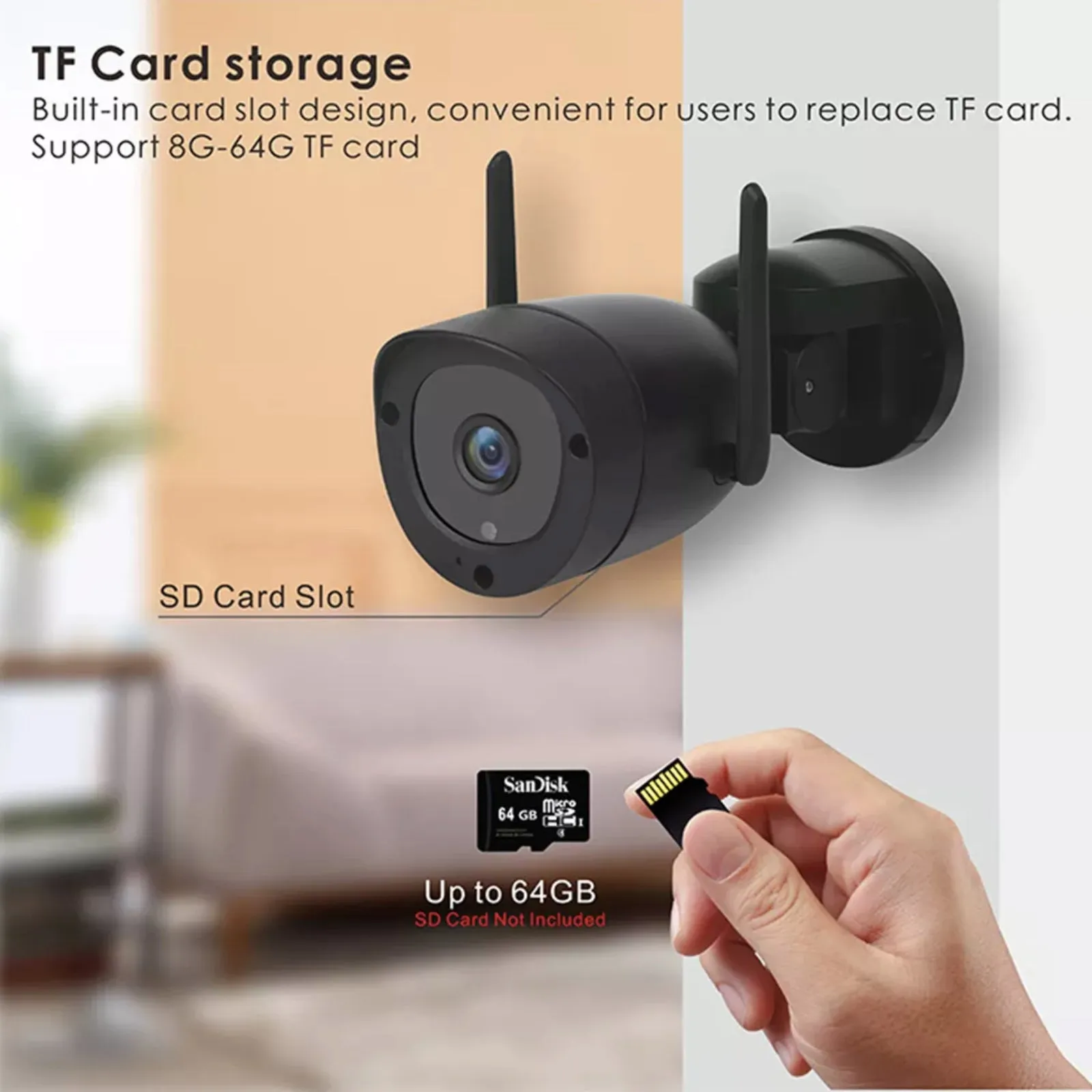

| Storage: | Support TF Card 4GB-128GB | |
| Storage capacity: | The 32G card can be stored for about 50days (storing about 10000videos, According to each shooting 30 seconds, startup 100 times a day calculation), if there's no space,the earliest video would be replaced by the latest one. | |
| Induction range: | 0-20m | |
| detection angle: | 110º | |
| Working temperature: | -10℃ to 60℃ | |
| Working humidity: | 0%-90%RH | |
| Power supply: | DC12V 2A Waterproof Adapter | |
| Stand-by power consumption: | around 0.05W | |
| Work power consumption: | daytime≤2W, night version ≤2.75W | |
| IP rating: | IP66 | |

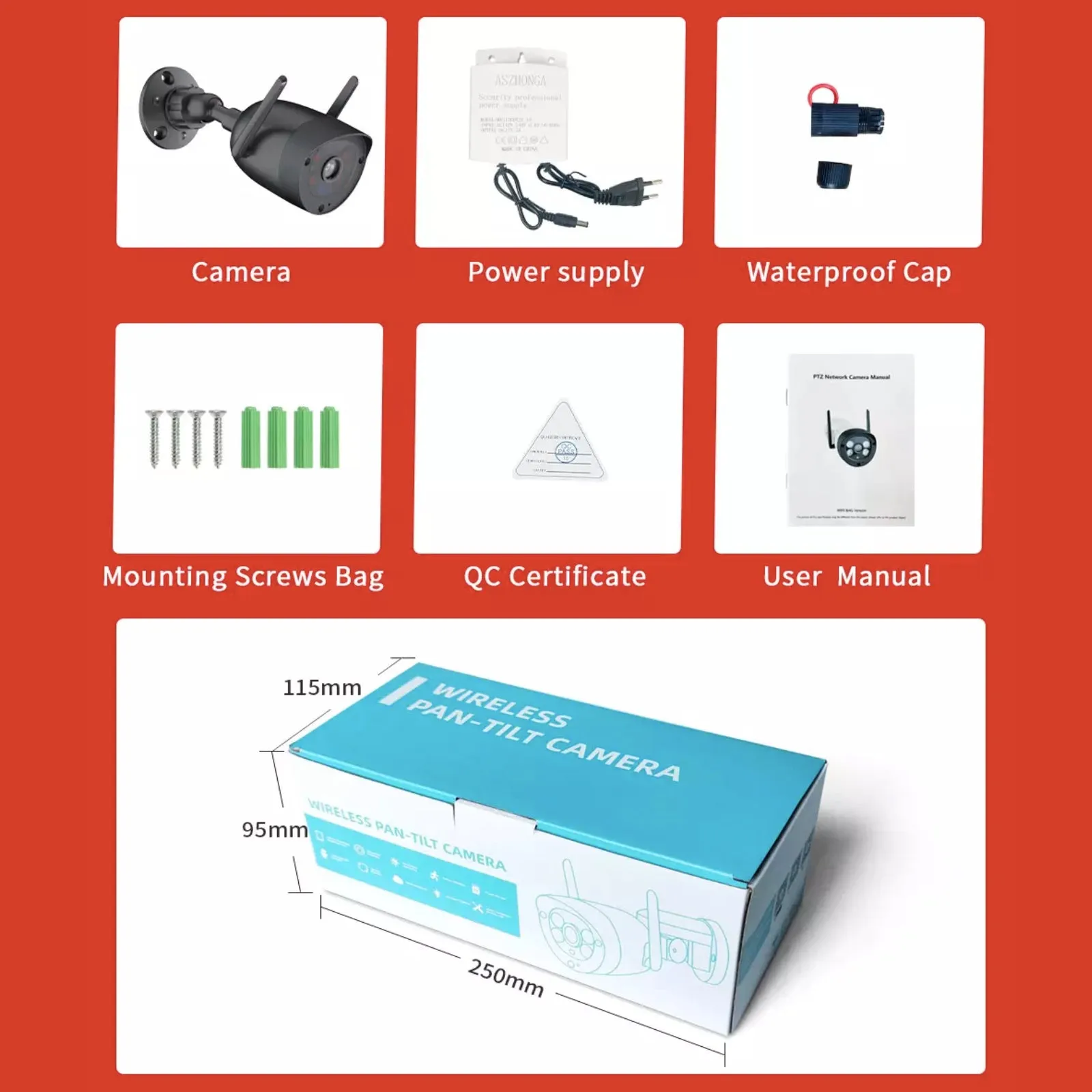

| Accessories: | camera*1、braket*1、scew pack*1、manual*1、USB cable | |
| optional accessory: | external power adapter, extension cable | |
| Product size: | 247*114*94 mm | |
| Product weight: | 0.55kg | |
| Packing size: | 247*114*94mm | |
| Packing weight: | 0.55kg | |
| carton size: | 495x588×304mm | |
| Gross weight: | 16.5kg | |
| Case Qty: | 30pcs /case | |
