● RT20U-5.1MP camera is an ultra-high performance CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.
● RT20U-5.1MP camera comes with advanced video & image processing application AMZView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C , C#/VB.NET, DirectShow, Twain Control API;
● The RT20U-5.1MP camera can be widely used in brightfield light environment and microscope image capture and analysis with moderate frame rate.

● Sensor & Size(mm): 5.1M/AR0521(C) 1/2.5“ (5.70x4.28)
● Pixel(μm): 2.2x2.2
● G Sensitivity Dark Signal:
- 18.8ke-/lux
- 73dB
- 40dB
● FPS/Resolution:
- 7.0@2592x1944
- 27.7@1296x972
- 100.5@648x486
● Binning: 1x1, 2x2, 4x4
● Exposure: 0.2ms~2000ms
● Spectral Range: 380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used
● White Balance: ROI White Balance/ Manual Temp-Tint Adjustment
● Color Rendering Technique: Ultra Fine Color Engine
● Capture/Control SDK: Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C , C#/VB.NET, Python, Java, DirectShow, Twain, etc);
● Recording System: Still Picture and Movie
● Cooling System*: Natural
● Operating Temperature: -10 °C~ 50 °C
● Storage Temperature: -20 °C~ 60 °C
● Operating Humidity: 30~80%RH
● Storage Humidity: 10~60%RH
● Power Supply: DC 5V over PC USB Port
● Operating System:
- Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit)
- OS X (Mac OS X), Linux
● PC Requirements:
- CPU: Equal to Intel Core2 2.8GHz or Higher
- Memory: 2GB or More
- USB port: USB2.0 High-speed Port
- Display: 17" or Larger
- CD-ROM

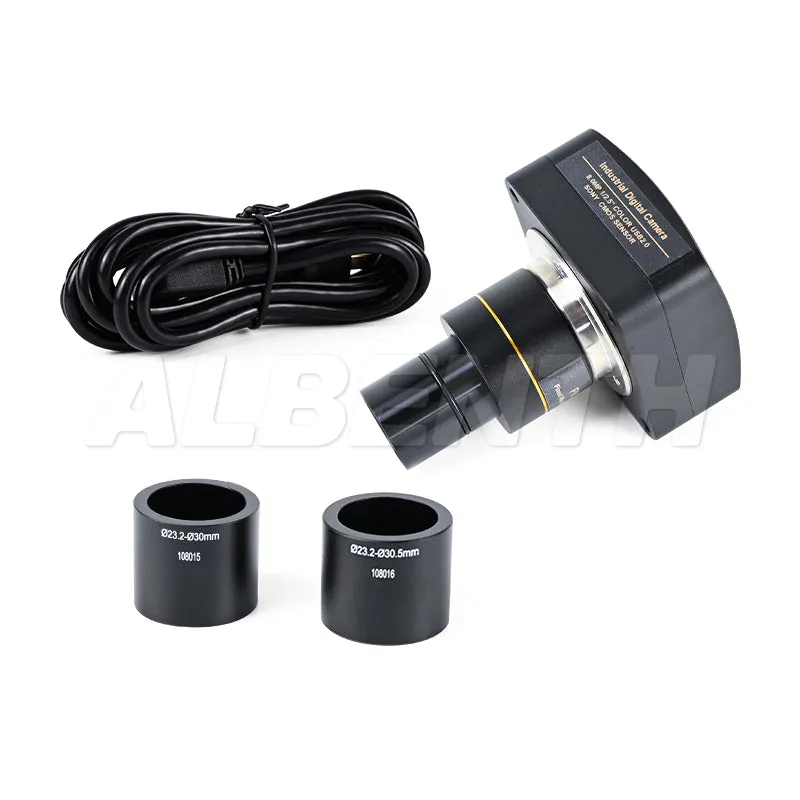

Packing list:
1x RT20U-5.1M Microscope Camera
1x USB2.0 cable /2.0m
1x CD (Driver & utilities software, Ø12cm)
1x Fixed Reduction lens: 0. 5X ( For 23.2mm eyepieces tube)
1x Adaptor rings for 30mm eyepieces tube
1x Adaptor rings for 30.5mm eyepiece tube
