Name: Dirt King - Long Travel Kit - 10 4Runner/FJ Cruiser
SKU: 549973

6-8 Week Lead Time

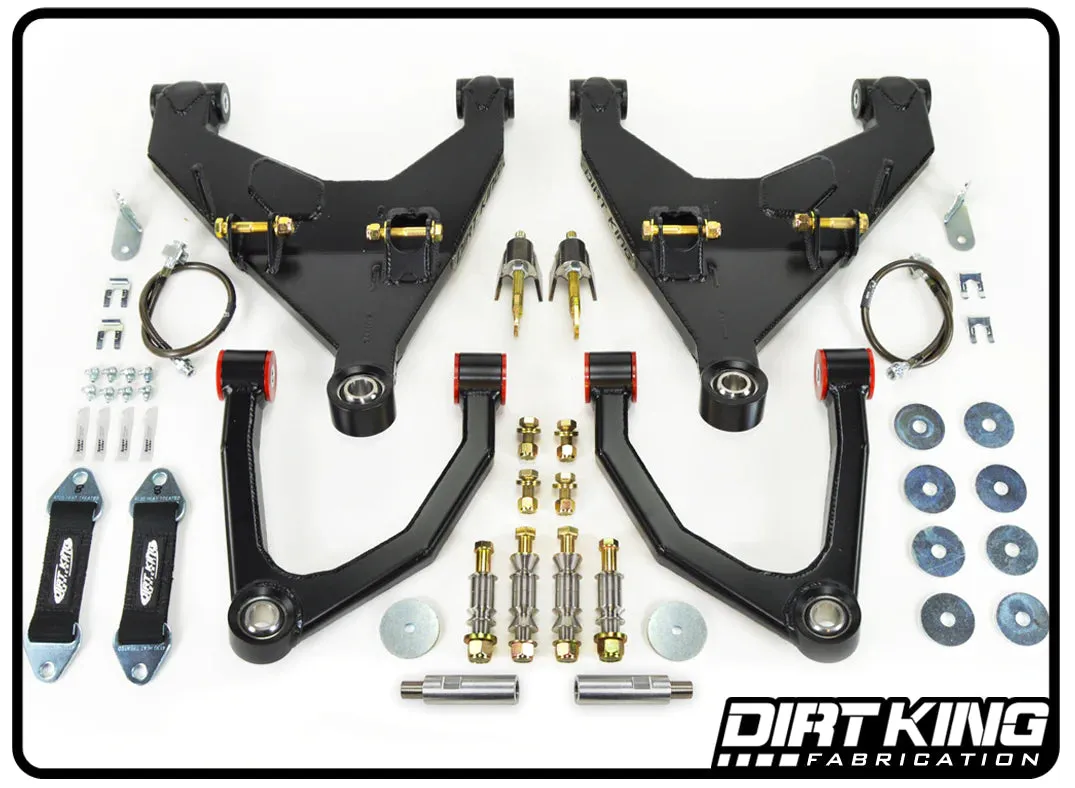

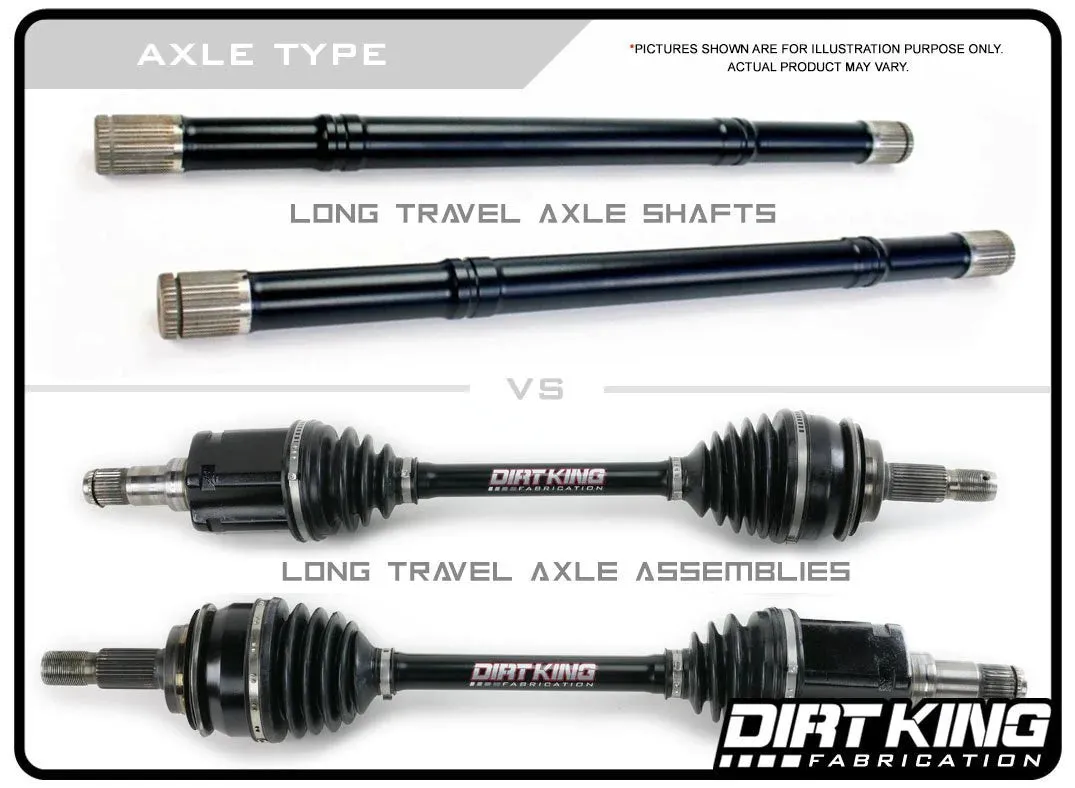

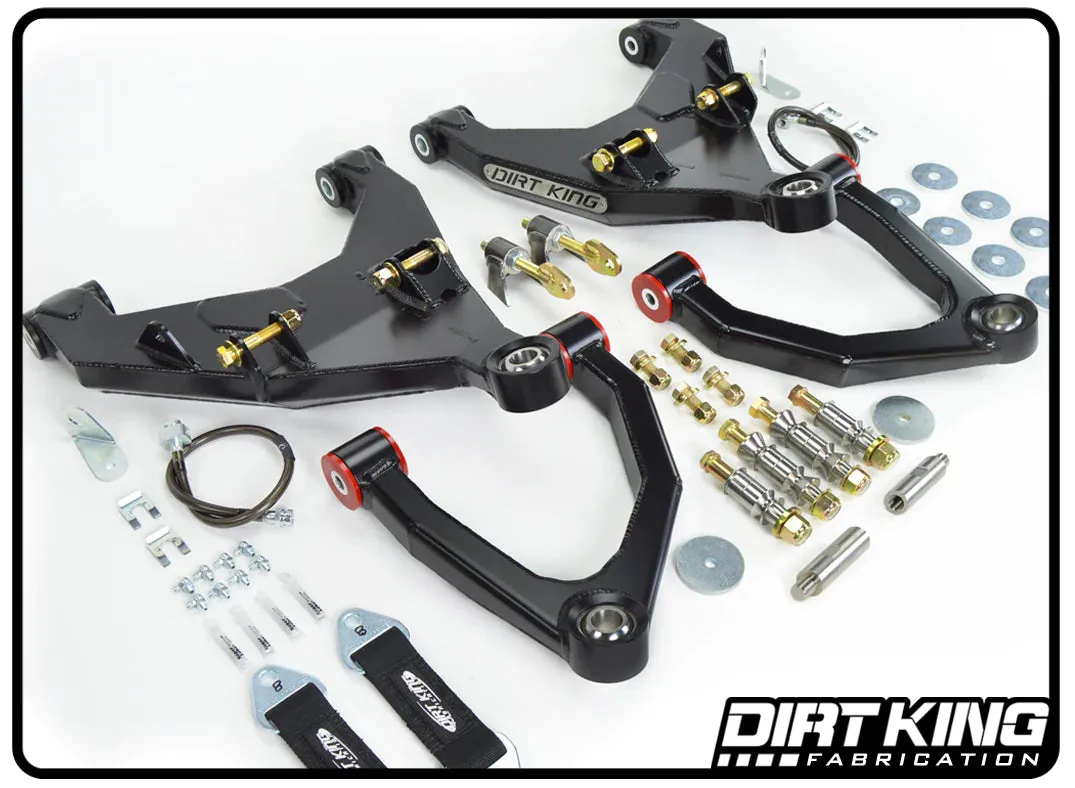

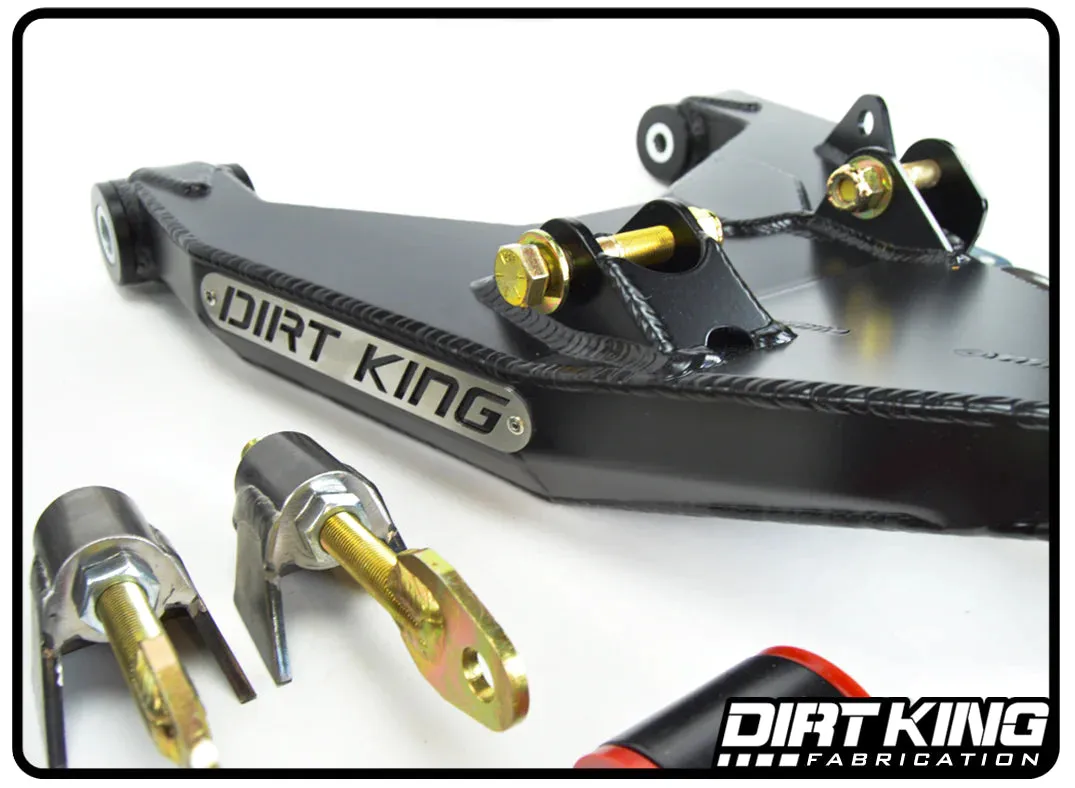

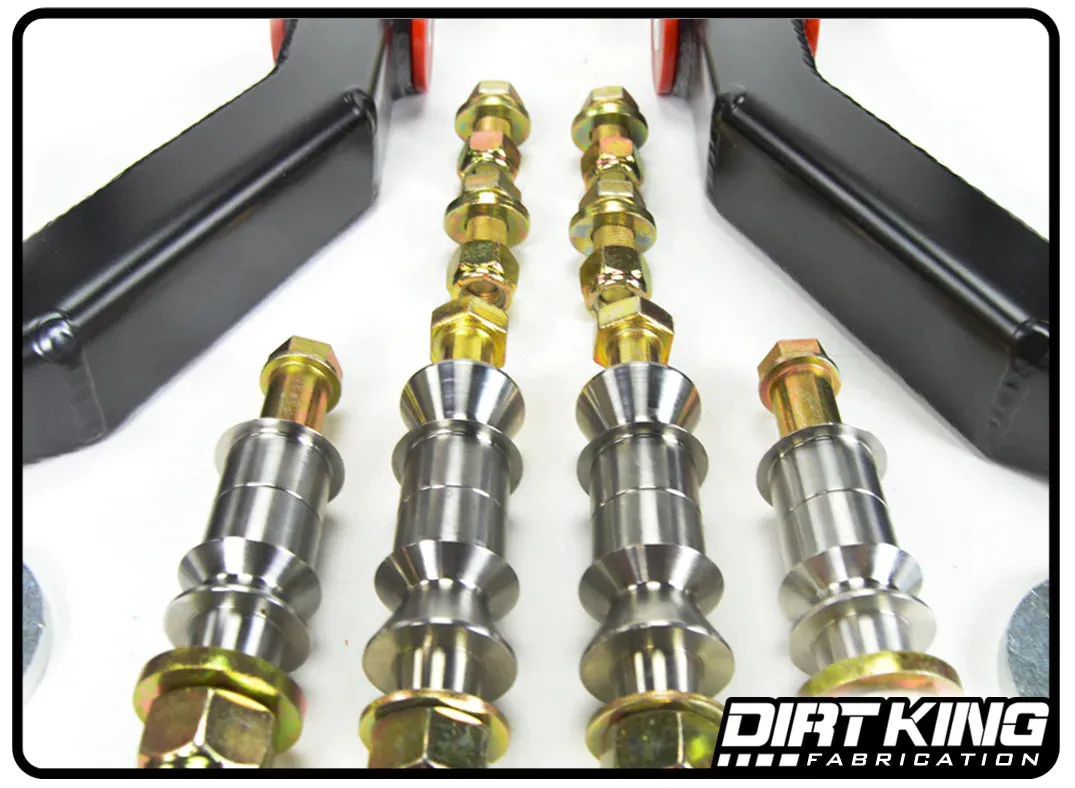

The Dirt King long travel kit was developed to drastically improve the vehicles off-road handling without compromising its day to day driving characteristics. This suspension system allows for 13.5u201d of travel and accepts up to a 35u201d tire. The kit is compatible with 2WD models and 4WD models along with the purchase of extended axle shafts. Our upper and lower arms are designed with 1u201d stainless steel uniballs for the outer pivots instead of ball joints for strength and increased articulation. Compared to the competition weu2019ve gained several inches of ground clearance by mounting the lower arms in the factory location instead of below it. This kit is CAD designed, thoroughly tested, and 100% made in America resulting in a product weu2019re proud to put our name on!

Wheel Travel: 13.5u201d
Amount of Lift: 0-4u201d
Track Width: 3.5u201d wider per side
Maximum Tire Size: 35u201d
Maximum Backspacing: 4.75u201d
Minimum Rim Size: 16u201d
Coil over Shock Size: 2.5u201d x 8u201d
Bypass Shock Size: 2.5u201d x 8u201d
Bump Stop Size: 2.0u201d x 2.0u201d

4WD
To achieve the full amount of travel on 4WD models you must install the 1u201d diff drop kit and machine the inner CVu2019s for more articulation.

Shocks

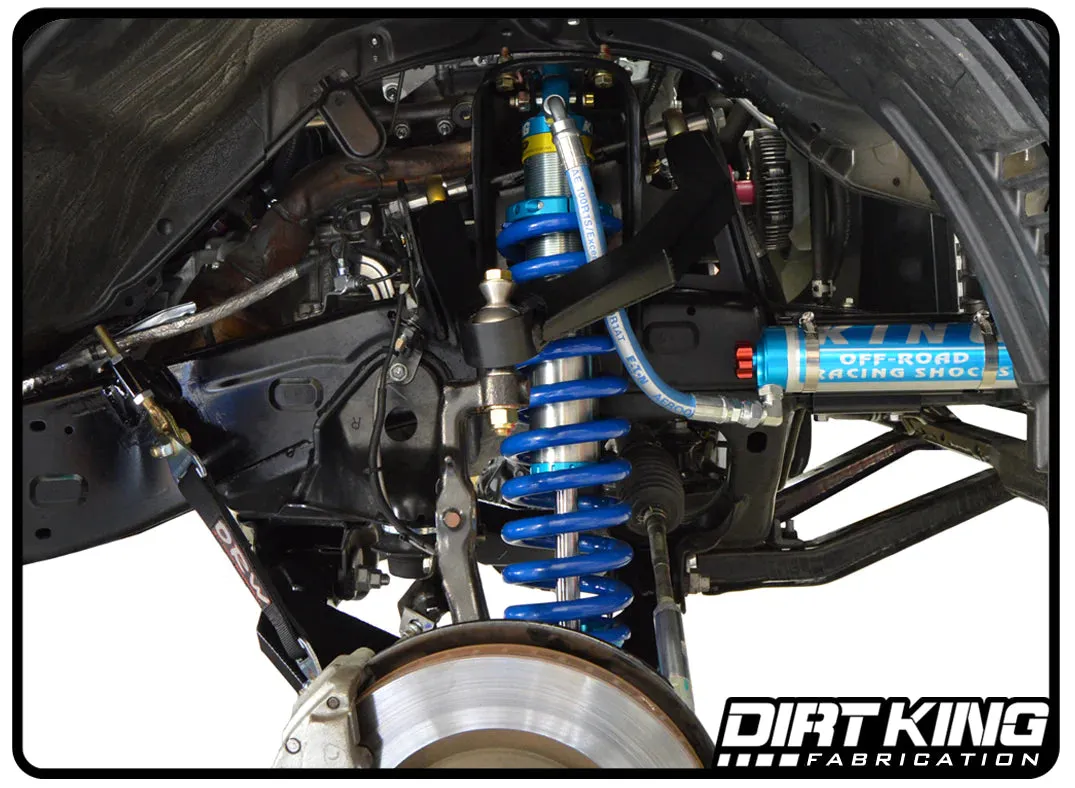

For the best performance and to achieve the full amount of travel you must purchase our spec built shocks or have them custom built based on our coil over spec sheet. You may also use Tacoma OEM replacement coil overs (King, Fox, Icon) with 600lb springs and 1.5u201d wide lower eyelet spacers with u00bdu201d mounting holes. These shocks will work but limit the amount of wheel travel. The OEM replacement coil overs include reservoir mounts that may not be compatible with our double shear kit option. Our long travel kit is also tabbed to accommodate bypass shocks. The bypass shocks will allow for superior suspension dampening and tunability. To mount the bypasses we offer a weld on bypass shock hoop kit (DK-811910) that can be purchased separately. The bypass shock hoop kit requires welding and modifications to the frame. For extreme off-roading the kit has the ability to accept bump stops along with the coil overs and bypasses. The use of bump stops will also require welding and modifications to the frame.

Wheel Travel
When shopping long travel kits many consumers tend to focus just on travel numbers. This is the reason many companies claim inaccurate numbers or donu2019t disclose the amount of work involved to achieve these numbers. Our goal is to build a suspension system with the highest amount of wheel travel without requiring major modifications to the vehicle or compromising its overall drivability.

Tire Info
When using 35u201d tires with this kit modifications to the wheel well will need to be made. The firewall pinch weld will need to be folded over and front cab mount needs to be shaved to avoid contact while turning. The upper wheel well will also need to be modified to avoid contact at full bump.

What's Included:
