Product Code: Sionyx_SA970100

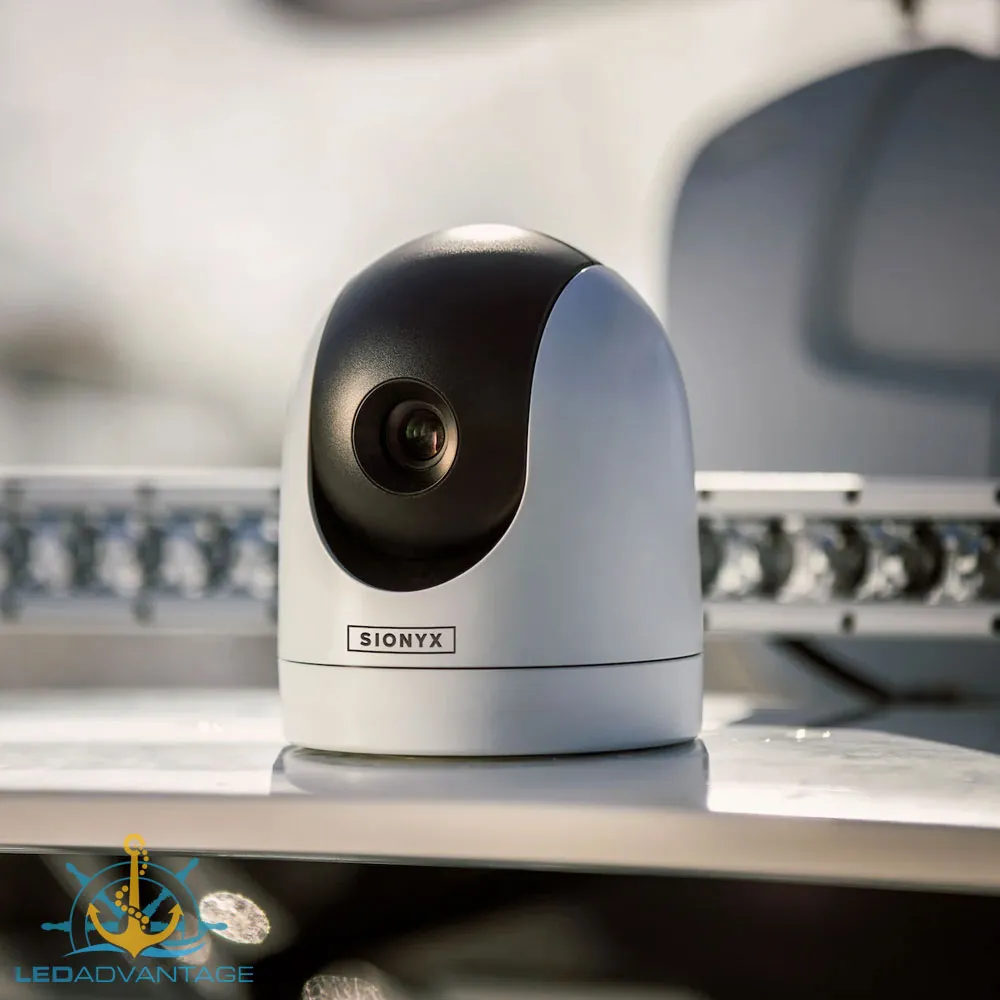

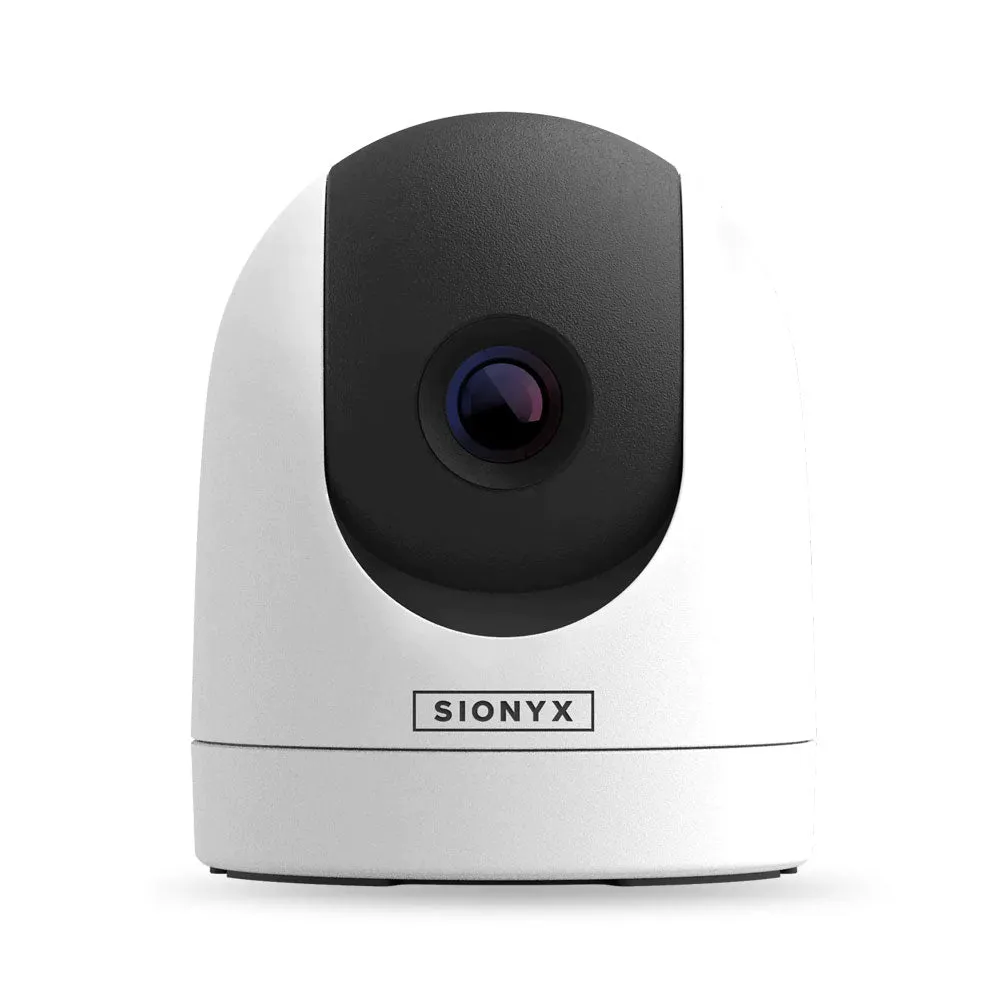

The Nightwave is an ultra low-light camera built around SIONYX's patented Black Silicon CMOS sensor. With flexible mounting options and easy setup, Nightwave can seamlessly integrate with major brand MFDs via the analogue video output, displaying clear colour digital night vision.

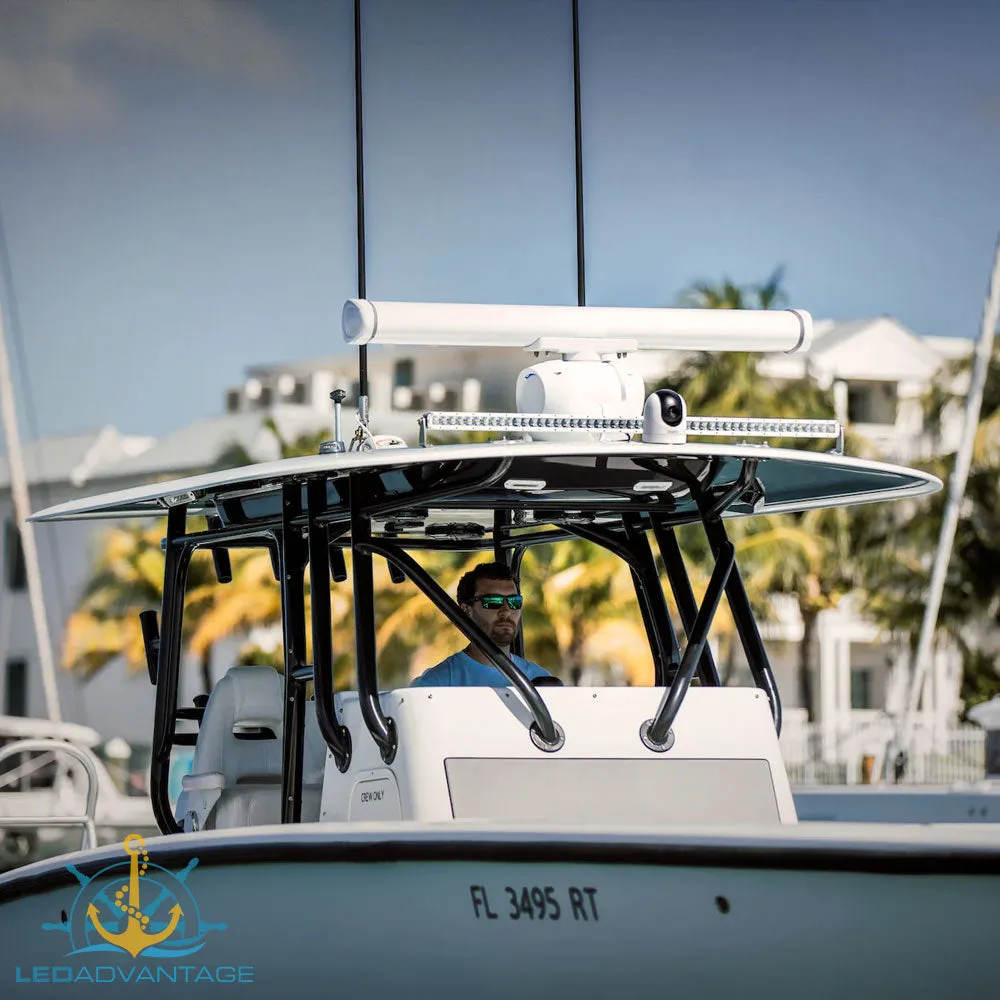

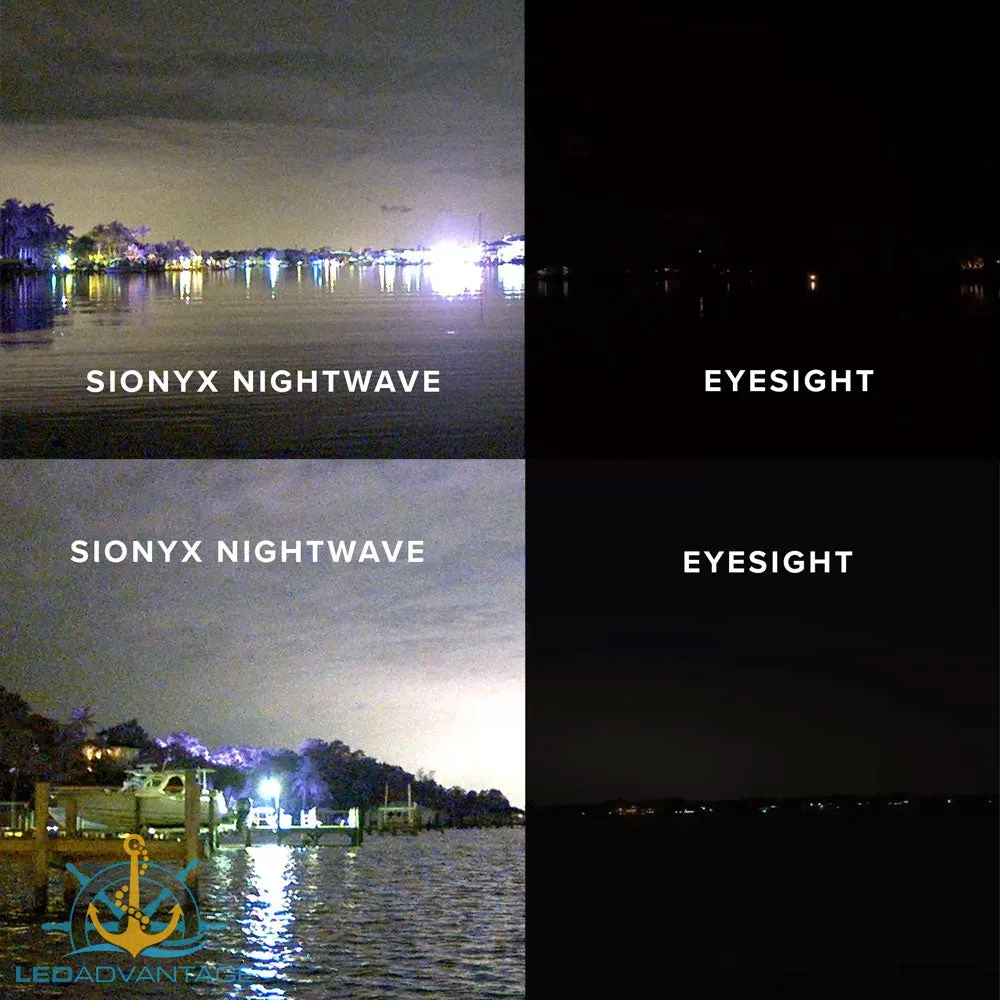

Designed to give both professional mariners and everyday boaties the ability to spot hazards and debris in moonless starlight without white light or expensive thermal cameras. The Nightwave will help mariners in boats small and large to navigate safely, avoiding collisions, and maximising time on the water. With IP67 rating, you can feel safe knowing that your camera can get wet.

With the SIONYX Nightwave, you will be able to spot a man-sized object from 150m away*. The 44° field of view increases situational awareness so you can spot unexpected markers, vessels, land formations and more. IP67 rated, submersible to 1 metre for 30 minutes, you can safely use Nightwave in inclement weather conditions.

Quick Specs:
• Can detect (man) sized objects upto 150m with a 1/4 moon*.
• 30Hz FPS @ 1280 x 1024 XQE-1350 BSI CMOS sensor.
• 16mm F/1.4 lens
• 30Hz FPS @ 640 x 640 NTSC video out.
• 10m to infinity focus range with a 400-1200NM visible spectrum.
• SMA / BNC / RCA analogue video connections.
• Wireless via WiFi Bluetooth.
• UV resistant polycarbonate.

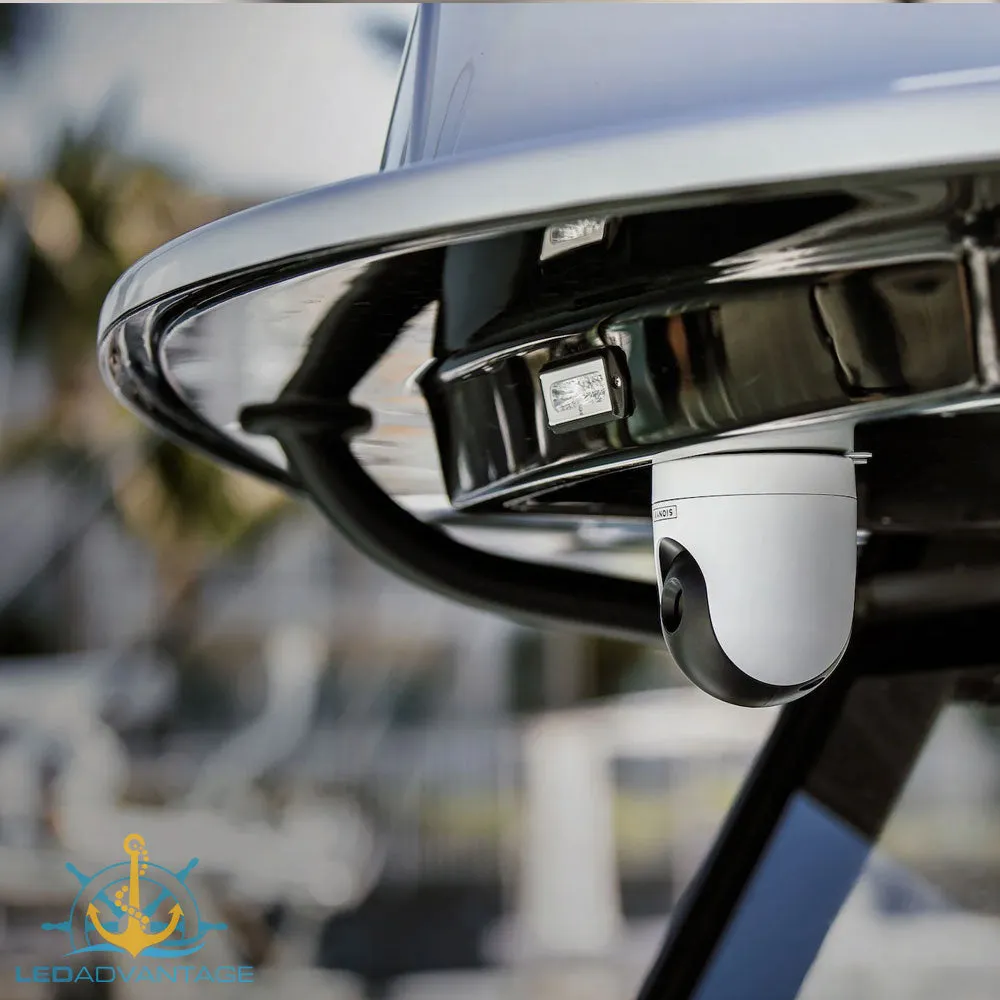

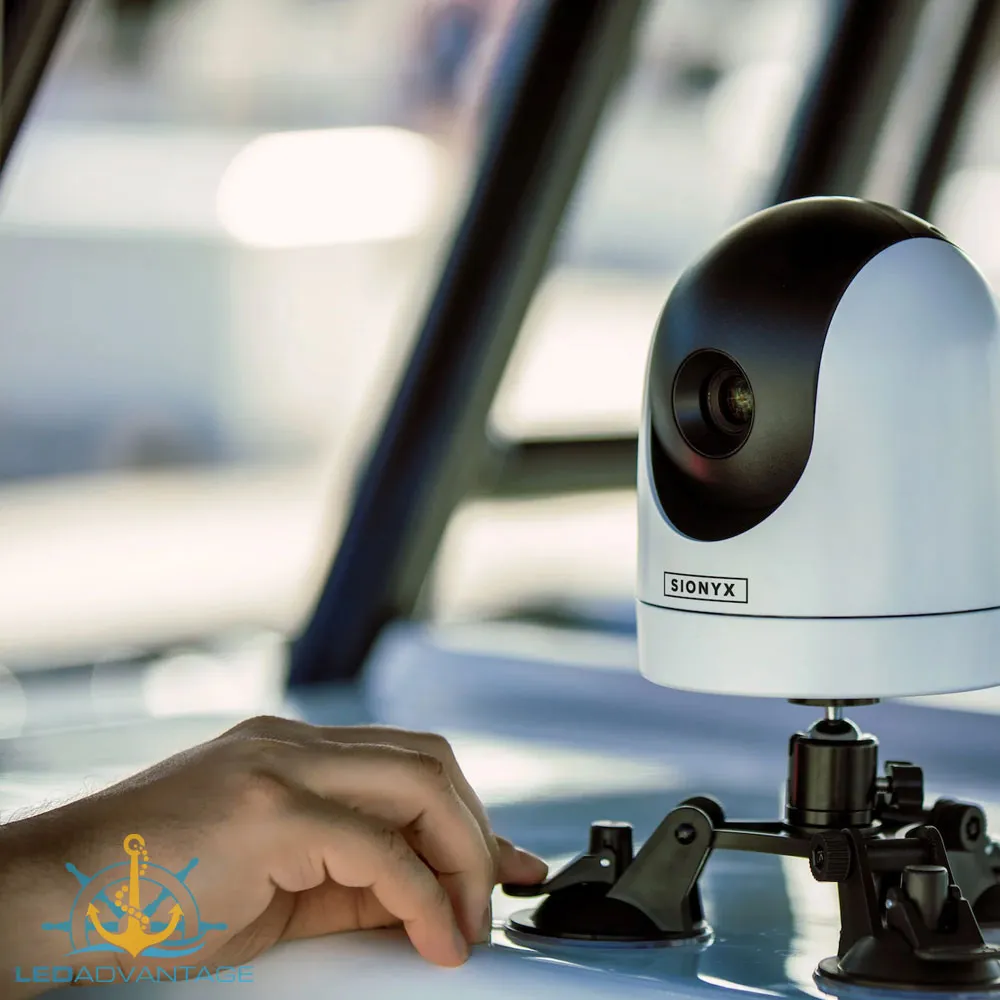

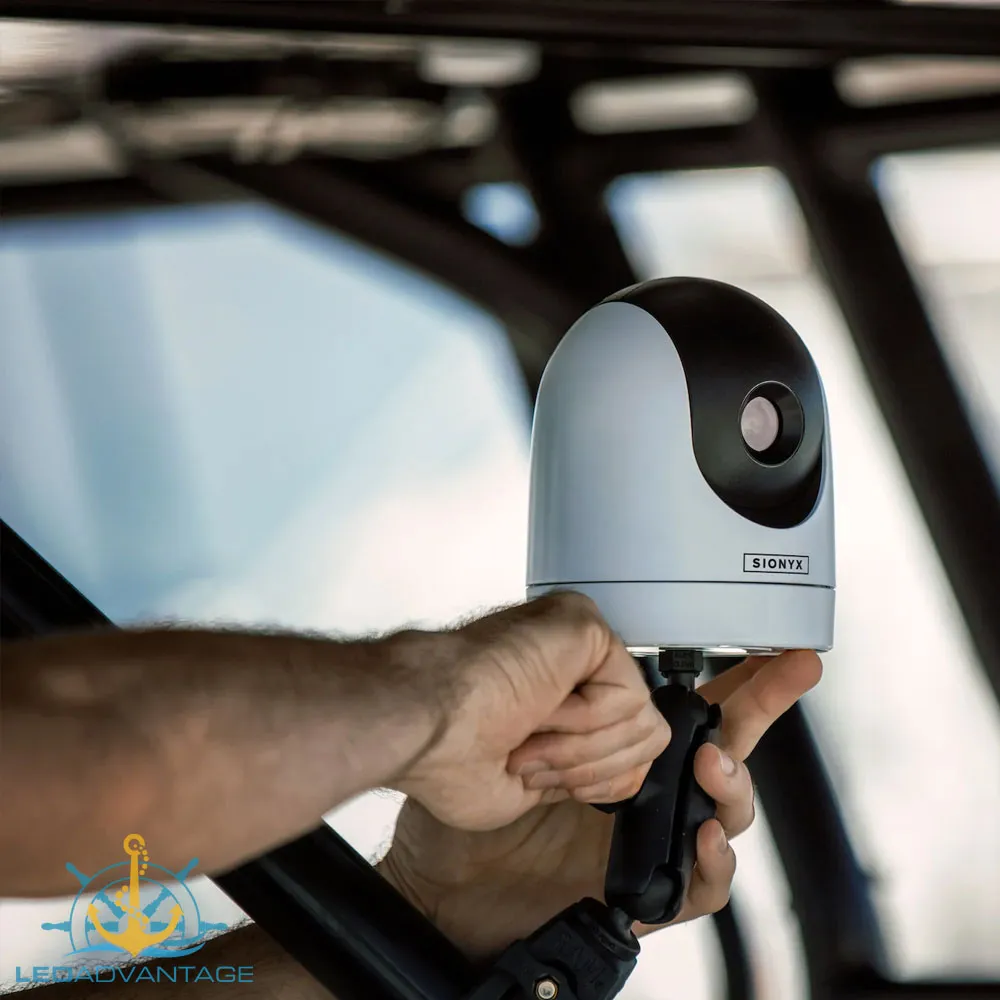

• Multiple mounting options.
• Operating temp: -20°C to 50°C.
• 5m Tinned copper wire.
• Shock and vibration: IEC60945 (V15G | H:9G) |IK08.
• Protection Rating: IP67.

In-depth Product Specs:

Camera Specs:
Sensor Type: XQE1350 BSI CMOS
Resolution: 1280 X 1024
Frame Rate: 30 HZ
Horizontal Field of View : 44°
Visible Spectrum: 400-1200NM
Focus Range: 10M TO INFINITY
Lens: 16MM F/1.4

System:
Video Out: Analog Video [NTSC]
Analog Video Connection: SMA / BNC/ RCA
Wireless Communications: WiFi Bluetooth
Power In: 12Vdc / 5Vdc[USB]
Power Connection: Tinned Copper Wire / USB [with provided optional cable]

Environmental:
Ingress Protection: IP67 Water / Dust - Resistant
Shock & Vibration: IEC60945 [V15G | H:9G] | IK08
Operating Temperature: -20°C To 50°C
Storage Temperature: -20°C To 80°C

Dimensions:
Weight: 870 G [1.9 LBS]
Dimensions: 127 X 127 X 152 MM [5 X 5 X6 IN]
Material: UV Resistant Polycarbonate

Power & Video Output Options:

The preferred video output must be selected using the SIONYX App.

WiFi communication and command and control options are available via the SIONYX App using either power source.

Powering the camera with 12V DC and using the analog video output is the preferred method for integration with onboard electronics [MFD].
A user may want to use USB power as a convenient option if a 12V DC battery is not available. While using USB as a power option, the analog video output will not be available.

Powering the camera with the USB is the preferred method when connecting to a host device [PC/Laptop].

When the camera is powered with 12V DC using the factory-installed cable:
WiFi live video streaming is available via the SIONYX App
USB video output is not available
Analog video output is available via the SMA-BNC-RCA connector on the factory-installed cable.

When the camera is powered with USB [5V DC] using the provided USB cable:
WiFi live video streaming is available when selected in the SIONYX App
Note: If WiFi video is selected via the App, USB video will NOT be available.
USB video out can be used when the camera is plugged into a host device [PC/Laptop]
Note: If USB video is selected via the App, WiFi video streaming will NOT be available.
Analog video output is not available.

Download:
User Manual
Product Specifications
Quick Start Guide
Installation Template
MFD Compatibility Guide

Installation Videos:
MFD Installation Guide
USB Installation Guide

Product Review: Click here

Contents/Kit Contains:
• SIONYX Nightwave Ultra Low-Light Marine Camera (White Housing)
• Analogue Video Cable [5M]
• SMA to BNC adapter
• BNC to RCA adapter
• Power Fuse & Fuse Holder
• Digital Video Cable USB [3M]
• Base Gasket
• Mounting Hardware
• User Manual
• Install Template
