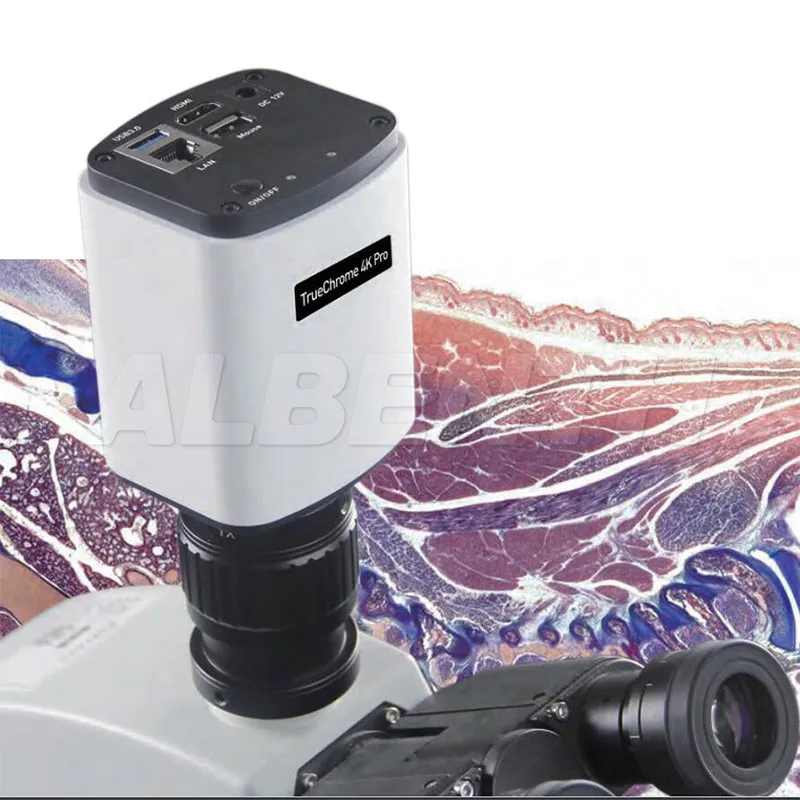

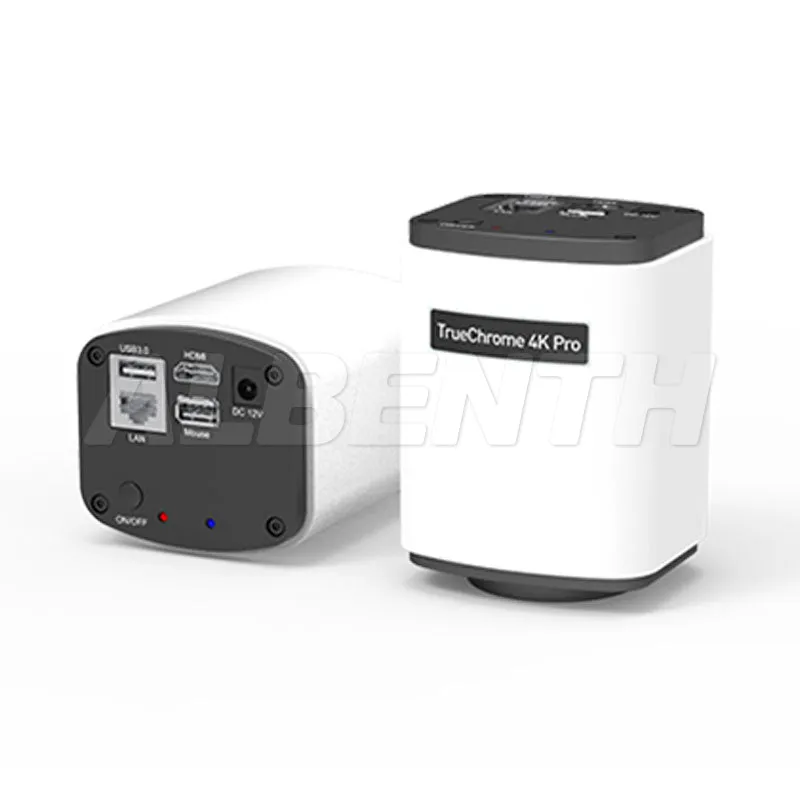

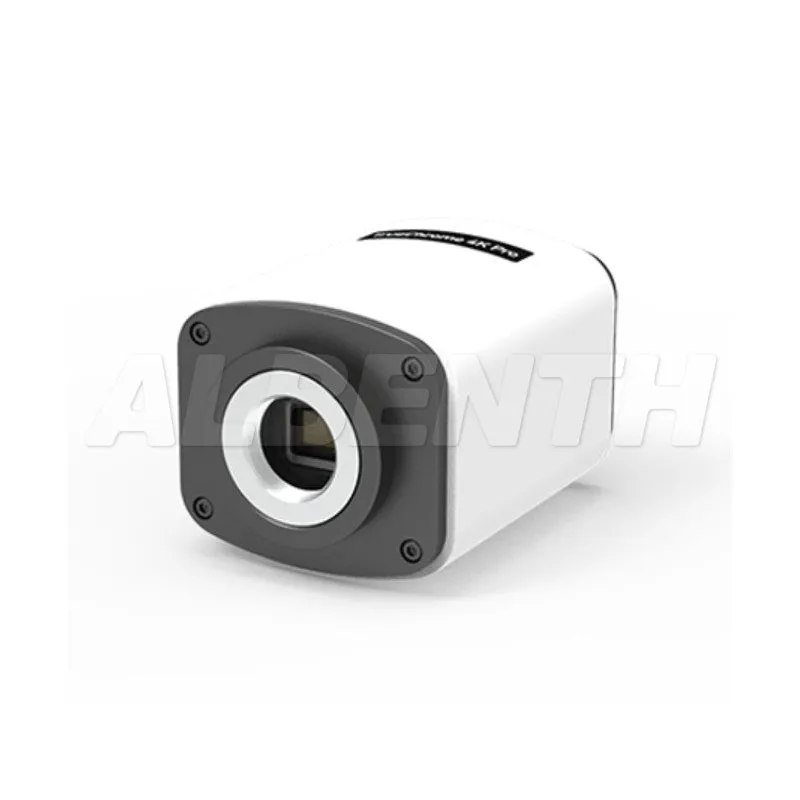

RT50H-4KR 4K camera is opening a new dual-channel mode of microscopic imaging. It not only inherits the shortcut functions from HDMI CMOS Camera but also perfectly transplants USB 3.0 camera professional functions like imaging control, image process, live stitching and live EDF, etc.
The camera is equipped with a USB interface, which allows it to be used directly on a PC. The 8MP = 4K resolution is unique on the market, allowing for ultra-sharp 4K images on large-screen TVs/monitors.

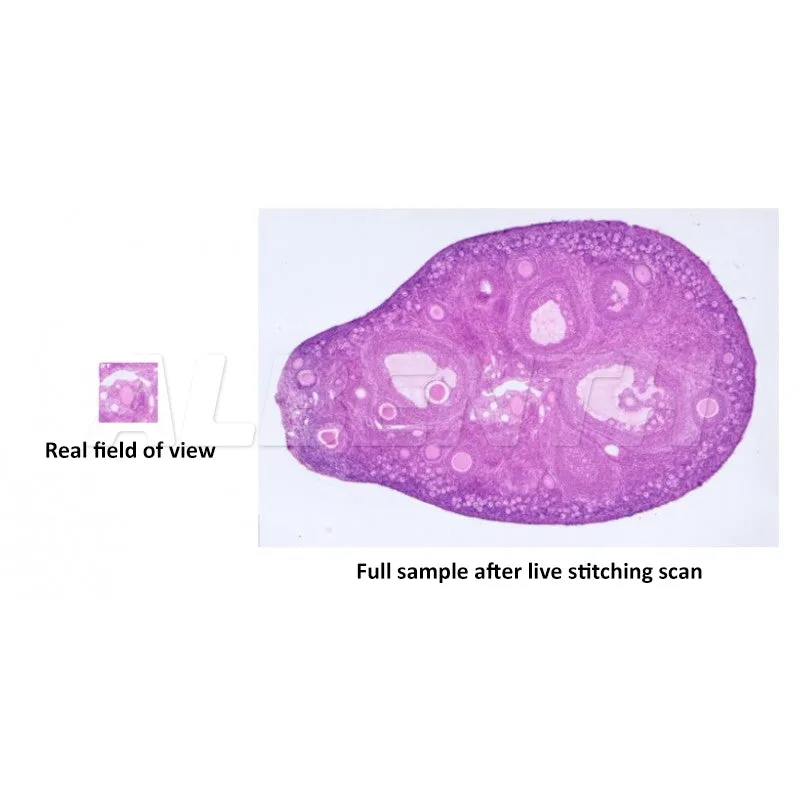

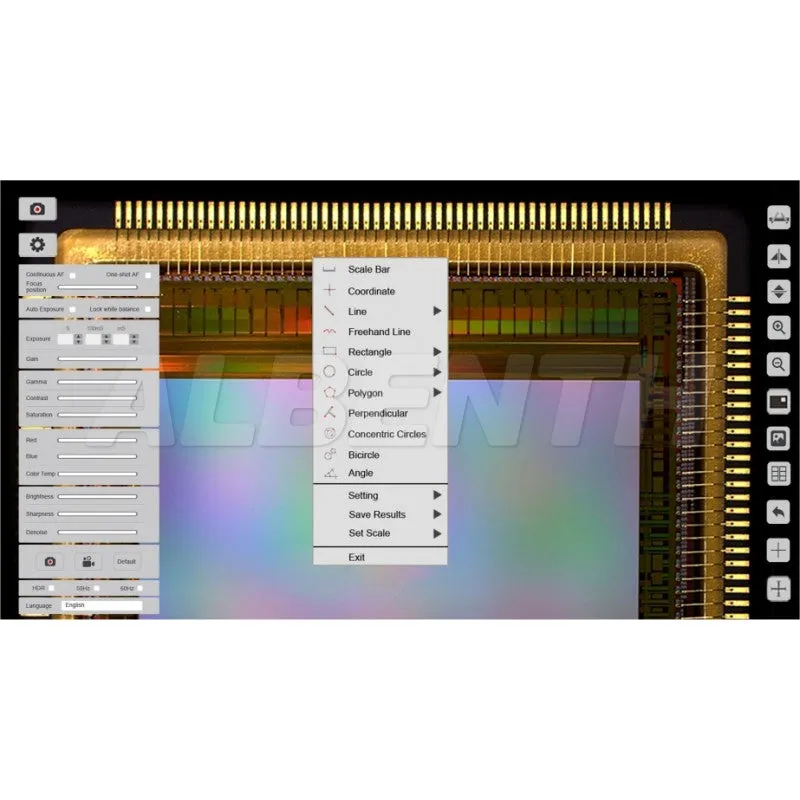

The Mosaic V2 software is easy to use and includes advanced features such as automatic focus stacking to create sharp images with increased depth of field and image stitching to facilitate the scanning and documentation of very large samples.
Specification
● Sensor Type: CMOS
● Sensor Model: IMX485LQJ-C
● Color/Mono: Color
● Array Diagonal: 13.33mm（1/1.2）
● Resolution: 8MP, 3840(H) x 2160(V)
● Pixel size: 2.9μm x 2.9μm
● Effective area: 11.1mm x 6.3mm
● Shutter Mode: Rolling
● Frame Rate: 20fps@USB 3.0, 30fps@HDMI, 30fps@LAN
● Exposure Time: 0ms~1S
● SD Format: FAT32
● Color Temperature: 1800-10000K
● Software:
- HDMI: Cloud 1.0 Ver
- USB: Mosaic V2
● HDMI Key Settings:
- Preview: 3840x2160,
- Capture: 3840x2160,
- Video recording: 30fps@3840x2160
● Picture Format:
- HDMI: JPG/TIF
- USB: TIFF/JPG/PNG/DICOM
● Multiple Cameras: Supports 4 Cameras Simultaneously in SDK
● Optical interface: Standard C Mount
● Power: 2.4W
● Camera weight: 505g
● Dimensions: 105.7mm x 78mm x 70.8mm
● Data Interface: HDMI. USB3.0, LAN
● Operating environment: Temperature: -10~45℃
Humidity: 10%~85%
● Operating system: Windows 7/10 (32 Bit/64 Bit)/Mac
● PC configuration: CPU: Intel Core i5 or better(Quad or more Core), RAM: 8G or more
